• Rear axle, 3.73 ratio
• Recovery hooks, front, frame-mounted (Not available on 2WD models unless (Z71) Off-Road Suspension Package is ordered. Included and only available with (Z71) Off-Road Suspension Package)
• Pedals, power-adjustable for accelerator and brake
• Transfer case, electronic Autotrac with rotary dial controls (Not available on 2WD models)
• StabiliTrak, stability control system with Proactive Roll Avoidance
• Four wheel drive
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Alternator, 145 amps
• Trailering equipment, heavy-duty, includes trailering hitch platform, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector, and (VR4) 2" trailering receiver
• Suspension, front coil-over-shock with stabilizer bar
• Suspension, rear multi-link with coil springs
• GVWR, 7200 lbs. (3266 kg) (Requires CK10936 models)
• Tire, spare P265/70R17
• Tire carrier, lockable outside spare, winch-type mounted under frame at rear
• Steering, power
• Brakes, 4-wheel antilock, 4-wheel disc
• Key, single, 2-sided

• Wheels, 4 - 17" x 7.5" (43.2 cm x 19.1 cm) aluminum, 5-spoke with smooth surface and rectangular pockets (Requires (QAN) P265/70R17 touring all-season blackwall tires or (QAS) P265/70R17 touring all-season White outlined-letter tires. Not available with (Z71) Off-Road Suspension Package)
• Tires, P265/70R17 touring, all-season, blackwall (Not available with (Z71) Off-Road Suspension Package)
• Fascia, rear color-keyed
• Assist steps, Dark Charcoal (Not available with (Z71) Off-Road Suspension Package)
• Fascia, front color-keyed
• Moldings, bodyside, color-keyed
• Door handles, color-keyed (Not available with (Z71) Off-Road Suspension Package)
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Daytime Running Lamps, with automatic exterior lamp control
• Fog lamps, front, halogen
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming, color-keyed with integrated turn signal indicators, ground illumination and curb-tilt (Mirror caps are color-keyed. Mirror caps are satin chrome with (Z71) Off-Road Suspension Package)
• Glass, Solar-Ray deep tinted (all windows except light tinted glass on windshield, driver and front passenger)
• Midgate, foldable door between cargo box and cab, with a removable and stowable rear window
• Cargo cover, rear rigid, 3-piece composite, stowable onboard
• Pickup box mat, Black rubber
• Storage box, integrated top box with locks and lights

• Audio system, AM/FM stereo with MP3 compatible 6-disc in-dash CD changer auxiliary input jack, seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume and TheftLock (Not available with (PCJ) Sun, Entertainment and Destinations Package)
• Audio system feature, Bose premium 7-speaker system with subwoofer in center console

• Seats, front bucket with leather-appointed seating (AG1) 10-way power driver and (AG2) front passenger seat adjusters, power lumbar control, heated seat cushion and seatbacks, 2-position driver memory, adjustable head restraints, storage pockets and floor console
• Console, floor with storage area, cup holders and integrated second row audio controls
• Audio system controls, rear with 2 headphone jacks (headphones not included), power outlet and controls for volume, station selection and media
• Remote vehicle starter system includes Remote Keyless Entry
• Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger. Includes rear air conditioning outlets in center console when bucket seats are ordered
• Universal Home Remote includes garage door opener, programmable
• Seats, rear 60/40 split-bench, 3-passenger, flip and fold with child seat top tether anchor
• Floor covering, color-keyed carpeting with (B58) carpeted floor mats
• Steering wheel, leather-wrapped
• Steering wheel controls, mounted audio and cruise controls
• Theft-deterrent system, PASS-Key III
• Cruise control, electronic with set and resume speed
• Tire Pressure Monitoring System (does not apply to spare tire)
• Warning tones, headlamp on, key-in-ignition, driver and right front passenger safety belt unfasten and turn signal on
• Windows, power with driver and front passenger Express-Down and lockout features
• Door locks, power programmable with lockout protection
• OnStar, 1-year of Directions and Connections plan. Includes the innovative easy to use Turn-by-Turn Navigation services which provide voice-guided directions (where available). Also includes Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, Emergency Services, Roadside Assistance, Remote Door Unlock, OnStar Vehicle Diagnostics, Hands-Free Calling, AccidentAssist, Remote Horn and Lights, Information and Convenience Services, and Driving Directions (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. Stolen Vehicle Location Assistance and Remote Door Unlock success varies with conditions. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Turn-by-Turn Navigation requires ABS and is not available in certain areas. Visit onstar or call 1-888-466-7827 for system limitations and details)
• XM Satellite Radio. With a wide variety of programming, XM has something to excite any driver. Whether you want to be entertained or informed, to laugh, think, or sing, XM has the perfect channel for you coast-to-coast, and in digital-quality sound. 3 trial months - no obligation (Available in the 48 contiguous United States. Required $12.95 monthly subscription sold separately separately after 3 trial months. All fees and programming subject to change. Subscription subject to customer agreement. For more information, visit gm.xmradio.com)
• Defogger, rear-window electric
• Mirror, inside rearview auto-dimming with 8-point compass and outside temperature display
• Headliner, cloth
• Visors, driver and front passenger and illuminated vanity mirrors, padded with cloth trim, extends on rod
• Assist handles, front passenger and rear outboard
• Power outlets, 2 instrument panel-mounted auxiliary with covers, 12-volt (On vehicles equipped with (A95) front bucket seats or (AN3) front leather appointed buckets seats, also includes 1 outlet inside center console and 1 in rear of console)
• Lighting, interior with dome lamp, driver-and passenger-side door switch with delayed entry feature, cargo light, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions

• Rear Parking Assist, Ultrasonic with rearview LED display and audible warning
• Air bags, dual-stage frontal, driver and right-front passenger with Passenger Sensing System (right-front passenger air bag status on overhead console) (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicle's Owner's Manual and child safety seat instructions for more safety information)
• Air bags, head curtain side-impact, front and rear outboard seating positions with rollover sensor (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety seat instructions for more safety information)
• Safety belts, 3-point, driver and front passenger and second row all seating positions, center seating position in first row is lap only
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats

ENGINE, VORTEC 5.3L V8 SFI FLEXFUEL WITH ACTIVE FUEL MANAGEMENT

capable of running on unleaded or up to 85% ethanol (310 hp @ 5200 rpm 335 lb-ft of torque @ 4400 rpm) aluminum block (STD)

• Mileage
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 16.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3800
• Gross Axle Wt Rating - Rear (lbs): 4100
• Curb Weight - Front (lbs): 2910
• Curb Weight - Rear (lbs): 2694
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Gross Combined Wt Rating (lbs): 13000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 600
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1050
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Suspension
• Suspension Type - Front: Coil Over Shock
• Suspension Type - Rear: Multi-Link
• Spring Capacity - Front (lbs): 3800
• Spring Capacity - Rear (lbs): 4000
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3925
• Axle Capacity - Rear (lbs): 4000
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 1.81
• Shock Absorber Diameter - Rear (mm): 1.81
• Stabilizer Bar Diameter - Front (in): 1.12
• Stabilizer Bar Diameter - Rear (in): 1.12
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.5 x .78
• Tires
• Front Tire Order Code: QAN
• Rear Tire Order Code: QAN
• Spare Tire Order Code: ZRS
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2135
• Rear Tire Capacity (lbs): 2135
• Spare Tire Capacity (lbs): 2135
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.75
• Steering Ratio (:1), At Lock: 3.0
• Turning Diameter - Curb to Curb (ft): 43.0
• Frame
• Frame Type: Body on
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Inboard LH Frame Rail
• Exterior Dimensions
• Wheelbase (in): 130.0
• Length, Overall w/o rear bumper (in): 221.3
• Width, Max w/o mirrors (in): 79.1
• Height, Overall (in): 76.6
• Overhang, Front (in): 38.8
• Overhang, Rear w/o bumper (in): 52.9
• Ground to Top of Load Floor (in): 31.0
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 63.0 Min, 98.2 Max
• Cargo Box Width @ Top, Rear (in): 50.0
• Cargo Box Width @ Floor (in): 50.0
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.5
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 45.5
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.3
• Front Hip Room (in): 64.4
• Second Head Room (in): 40.0
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 62.3
• Summary

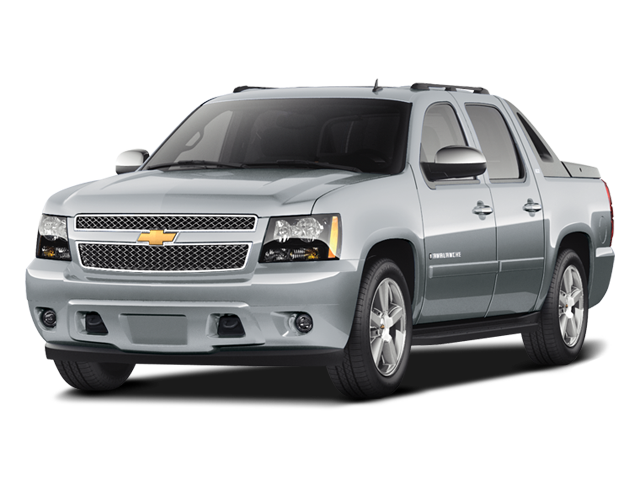

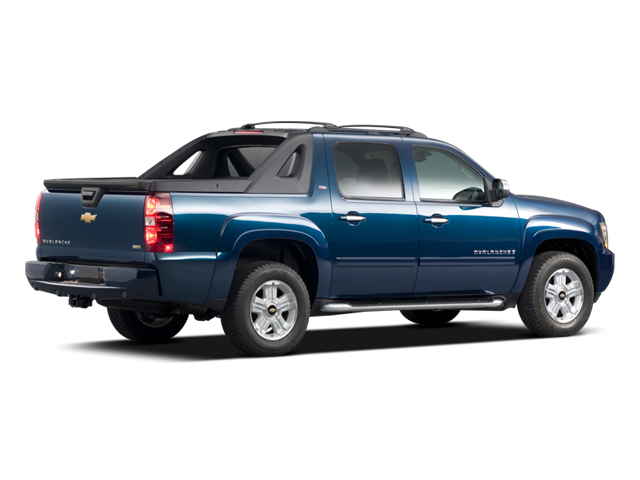

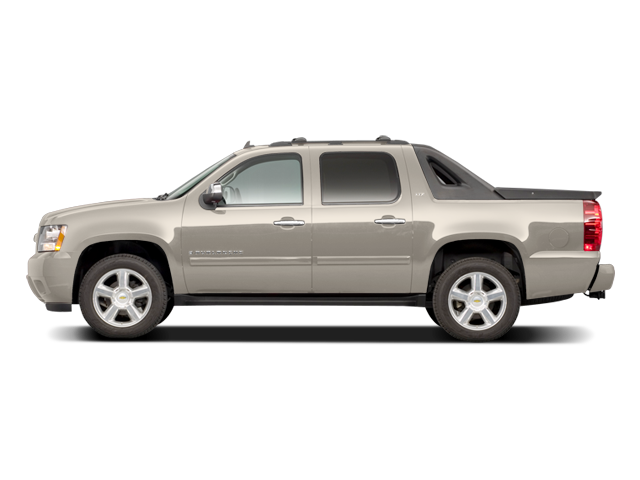

• Vehicle Name: Chevrolet Avalanche
• Body Style: 4 Door Crew Cab
